Architecture
Atlas Protocol is a Layer 1 CometBFT-based blockchain purpose-built for decentralized storage at planetary scale. It introduces a multi-dimensional storage credit mechanism that represents usage in byte-seconds, enabling fair reward distribution proportional to actual storage provided while eliminating complex per-user accounting. The protocol separates the control plane (on-chain: subscriptions, file indices, challenges, rewards) from the data plane (off-chain: file bytes stored by providers).
Design Overview
A Proof of Stake blockchain secured by economic stake — validators lock ATL tokens as collateral, propose and vote on blocks with voting power weighted by stake size. Built on CometBFT (BFT consensus, tolerating up to ⅓ malicious validators) and the Cosmos SDK framework.
The native token is ATL (micro-denomination: uatl).

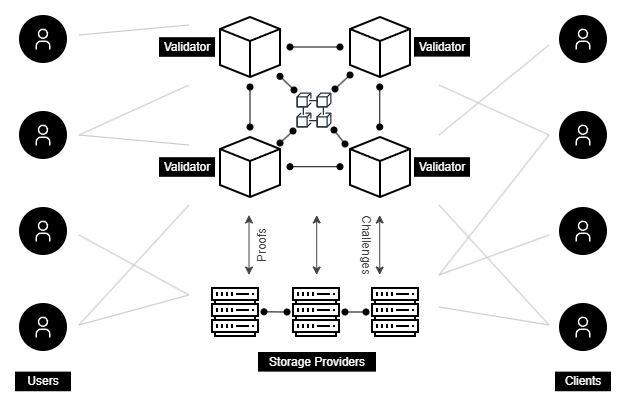

Network Model
The network consists of four actor classes. Validators secure the chain via CometBFT consensus, while providers store the actual file data off-chain. The control plane (subscriptions, file indices, challenges, rewards) lives entirely on-chain. The data plane (file bytes) is stored and served off-chain by providers. Files are replicated across multiple providers for redundancy.
| Actor | Role |
|---|---|
| Validators | Secure the blockchain — process transactions, finalize blocks, enforce protocol rules |
| Providers | Commit capacity, store and serve file data, respond to proof challenges, earn rewards |
| Clients | Download files from providers, use the blockchain as an index |
| Users | Purchase storage, upload/delete files, manage permissions, participate in governance |
Module Overview
| Module | Purpose |
|---|---|
x/storage | Storage accounting (byte-second credits), subscriptions, provider registration, file indexing, proof-of-persistence challenges, reward distribution |
x/filetree | Optional hierarchical file system abstraction — human-readable paths, directories, access control on top of FIDs managed by x/storage |
x/oracle | ATL token price feed from external markets, used to parameterize storage costs and other economic functions |
Storage Credits
Storage is measured in byte-seconds — one credit = storing one byte for one second. This couples data size with retention duration, enabling granular billing and fair reward distribution. Credits are minted on subscription purchase, allocated per subscription, and burned on reward distribution. Residual credits from expired subscriptions become protocol-owned liquidity.

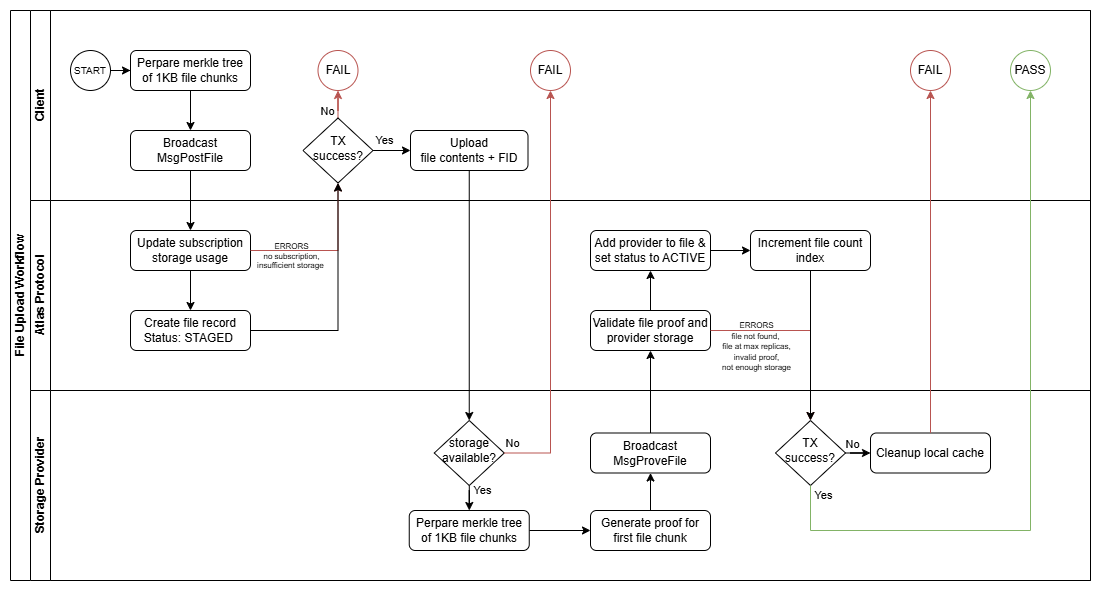

File Lifecycle
Files are identified by SHA256(merkle_root | creator | nonce), keyed on-chain as (creator, subscription_id, fid). A file progresses through STAGED → STRAY → ACTIVE statuses as providers prove they hold it, or becomes DEAD if all providers fail their proof challenges.
Proof of Persistence
Providers are challenged each proof round via a cursor iterating through the file store. Direction alternates per window (ascending/descending) to prevent edge bias. Each provider of a file is challenged on a deterministic chunk derived from:
chunkIndex = XXH3(prevBlockHash || fid || round || providerIndex) % totalChunks
Merkle trees use a hybrid scheme — Blake3 cryptographic leaves (1 KiB chunks) with XXH3-128bit internal nodes — balancing security with ~10× faster proof computation. Missed challenges incur a double-time penalty; repeated misses remove the provider and can mark the file as DEAD.
Governance
ATL holders vote on parameter changes and upgrades. Voting period is 14 days with 51% quorum. Major upgrades (state-affecting) require a governance vote; minor upgrades (non-consensus-breaking) do not.
